Flow controls

NAMUR FLOW CONTROL G 1/4” NAMUR

TECHNICAL FEATURES
- Model 1: for 5/2 way solenoid valves. To regulate the forward and backward stroke of a double acting pneumatic actuator.
- Model 2: for 3/2 way solenoid valves. To regulate the forward and backward stroke of a spring return pneumatic actuator.
- Standard: NAMUR 1/4
- Operating pressure: 1-10 bar (14,5-145 PSI)
- Weight: Model 1 = 140 gr (0,308 Lb) - Model 2 = 220 gr (0,485 Lb)

Use following screws to mount with solenoids ER8188 and ER8581/ER8681:
- Version 1 = M5 x 55
- Version 2 = M5 x 65

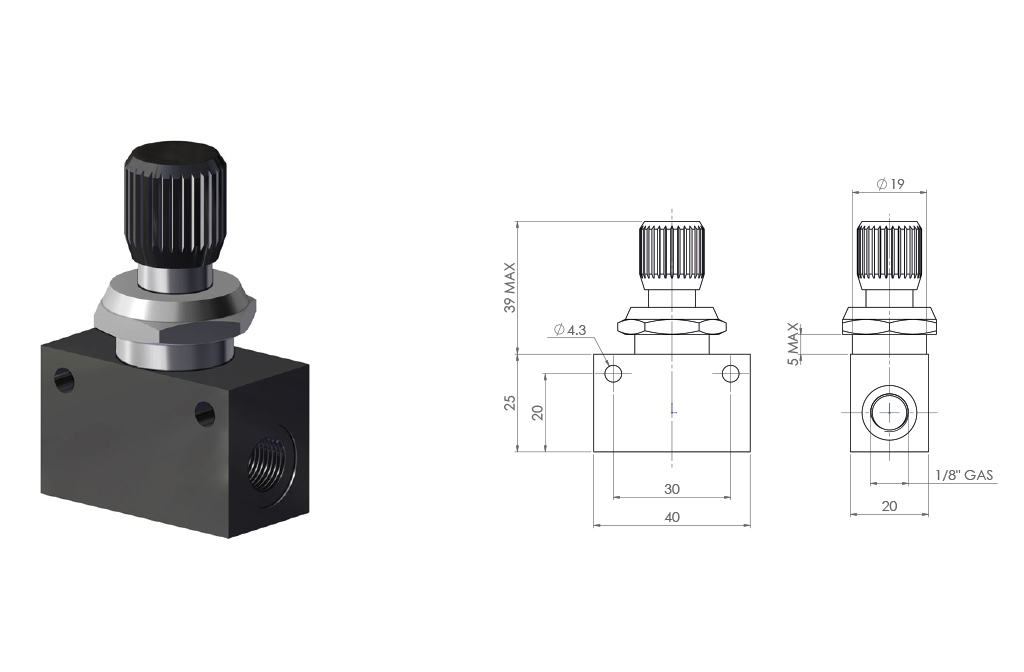

FLOW CONTROL G1/8"

TECHNICAL FEATURES
- Pneumax monodirectional model 6.01.18/4
- Pneumax bidirectional model 6.01.18/5
- Connections 1/8”
- Max working pressure 10 bar
- Working temperature -5 ÷ +70°C
- Media: Filtered air
- Bore diameter 3mm
- Weight 0,1kg

FLOW CONTROL G 1/4”

TECHNICAL FEATURES
• Pneumax monodirectional model 6.01.14 N
• Pneumax bidirectional model 6.01.14/1 N
• Connections 1/4"
• Max working pressure 10 bar
• Working temperature -5 ÷ +70°C
• Media: aria filtrata
• Bore diameter 7mm
• Weight 0,105 kg
